New Equipment
Powder Coating Systems And Solutions We Offer
Call Us Today at 888-310-2680 or Fill Out Our Online Survey to find the best powder coating system and equipment for your business. Let Slocum Equipment, Inc. provide you with the right finishing solution at the right price!
Batch Powder Coating Booths
Our Cartridge Batch Powder Booths feature an open front (also know as open face) design and are ideal for small to mid-size powder applications. To ensure cartridge filters remain clean, this booth is built with a purge control feature, which assures the safe operation of the coatings enclosure by maintaining the airflow at design levels. During operation, powder accumulates on the cartridge filters, and as the cartridge filters load, airflow decreases and negative pressure rises within the air handler. A timer activates a system of air purging valves that clear the cartridge filters of accumulated powder to ensure maximum filter life.
Booth Features
RTT booths are constructed from heavy-duty 18-gauge, prime quality galvanized steel and engineered with corresponding support structures.
All panels and support members are laser cut and precision formed for consistent fit allowing for easy nut and bolt assembly.
Collector Module recirculates clean, filtered air into the booth and includes high-quality primary filter and final filter modules. Factory-assembled, powder-coated white mild steel construction with removable powder drawer.
LED lighting is constructed of 22-gauge steel which is powder-coated white, and available in 4000 and 8000 lumen models. E-Lights are ETL listed for the US and Canada with Class 1 Division 2, Group A, B, C, and D and Class 2 Division 2, Group F, and G ratings.
Control Equipment Includes NEMA 12 UL and ETL listed control panel mounted to the side of the collector module, factory wired and tested. Automatic or manual cartridge filter pulse down mode; Door mounted magnehelic gauge for cartridge filter monitoring; VFD to control fan speed; Pressure switches to monitor final filter pressure and warn/ shutdown if pressure exceeds set point.
Air solenoid valve interlocked to the exhaust fan and air supply for the spray application equipment.
RTT booths meet and/or exceed quality performance standards and all applicable OSHA and NFPA regulations.
Process Powder Booths
RTT offers a Pass Through Powder Coating Booth ideally suited for conveyorized coating applications looking for the most efficient system option. Our Pass Through Powder Booths are precision engineered to provide access for coating both sides using manual spray equipment, automatic spray equipment, or both. The conveyor slot in the top of the booth allows the racked parts to pass through the spray area with the conveyor installed above the booth. Overspray is minimized and productivity is enhanced while parts are handled in the most efficient manner possible. The booth also features a collector module that can be rolled away for easy color change and has additional modules available for multiple color operations.
Booth Features
RTT booths are constructed from heavy-duty 18-gauge, prime quality galvanized steel and engineered with corresponding support structures. Collector Module recirculates clean, filtered air into the booth and includes high-quality primary filter and final filter modules. Factory-assembled, powder-coated white mild steel construction with removable powder drawer.
LED lighting is constructed of 22-gauge steel which is powder-coated white, and available in 4000 and 8000 lumen models. E-Lights are ETL listed for the US and Canada with Class 1 Division 2, Group A, B, C, and D and Class 2 Division 2, Group F and G ratings. Control Equipment Includes NEMA 12 UL and ETL listed control panel mounted to the side of the collector module, factory wired and tested. Automatic or manual cartridge filter pulse down mode; Door mounted magnehelic gauge for cartridge filter monitoring; VFD to control fan speed; Pressure switches to monitor final filter pressure and warn/ shutdown if pressure exceeds set point.
Variable Frequency Controlled Fan (VFD) is connected to the fan motor, allowing the fan to turn at any speed so that optimum airflow within the booth can be achieved. The VFD can also save on operating costs due to the reduced amp load on the motor and the ability to slowly ramp the motor up to speed. Purge Control Assures the safe operation of the coatings’ enclosure, by maintaining airflow at design levels. RTT booths meet and/or exceed quality performance standards and all applicable OSHA and NFPA regulations.
Batch Powder Booths
Some of the standard features provided in Rohner powder spray booths include:
- Premium 18 gauge G90 galvanized steel, recommended powder coated white
- No nut or bolt heads for a smooth interior surface for easy cleaning
- Expandable sections for future growth of spray area
- Quiet blower with TEFC direct drive motor run by VFD
- Automatic back pulse cleaning
- High-efficiency, T-8 fluorescent Class I Div. II lighting
- Horizontal airflow with adjustable velocity
Pre-wired, NEMA 12 dust-tight industrial control panel reduces install cost and includes panel-mounted variable volume adjustment for optimizing airflow and transfer efficiency. Automatic back pulse cleaning of our powder spray booths ensures consistent airflow and extends filter life, and our automatic clogged-filter shutdown ensures a safe environment. Rohner Batch Powder Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.
Process Powder Booths
Some of the standard features provided in Rohner powder spray booths include:
- Premium 18 gauge G90 galvanized steel, recommended powder coated white
- Polycarbonate ceiling panels with conveyor slots
- No nut or bolt heads for a smooth interior surface for easy cleaning
- Expandable sections for future growth of spray area
- Quiet blower with TEFC direct drive motor run by VFD
- Automatic back pulse cleaning
- High-efficiency, T-8 fluorescent Class I Div. II lighting
- Horizontal airflow with adjustable velocity
Pre-wired, NEMA 12 dust-tight industrial control panel reduces install cost and includes panel-mounted variable volume adjustment for optimizing airflow and transfer efficiency. Automatic back pulse cleaning of our powder booths ensures consistent airflow and extends filter life, and our automatic clogged-filter shutdown ensures a safe environment. Rohner In-Line Process Powder Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.
Process Powder Booths
The “New” PLC Controlled Deimco Powder Booth will provides complete in-line spray containment enclosure with primary and secondary air filtration. All MD Series Booths have a PLC in the self-contained electrical panel making automatic gun control affordable for your present and future needs.
The “New” MD Series Booths also include a pneumatic panel and a separate roll away filter cartridge module for captured powder containment.
- Pre-Engineered Booth
- Detachable Filter Module
- Compact Design
- Shop Tested
- Advanced Filter Technology
- Low Air-To-Cloth Ratios
- 18 Gauge Stainless Steel Canopy and 11 Gauge Seamless Stainless Steel Canopy
OVENS
Powder Coating Batch Ovens
If flexibility, reliability, and efficiency are what you are looking for, then a GAT Batch Oven is the perfect fit for you. GAT batch ovens feature 4” thick, 4# mineral wool batt insulated 18 gauge oven panels, utilizing their own tongue and groove design along with their patented isolator spreader clip and stiffener channel construction, GAT batch oven panels have 40% fewer seams and no hot spots.
GAT Batch ovens are suitable for wet paint or powder coat paint applications and have a maximum operating temperature of 500 deg. F
All GAT Batch Ovens are are pre-fired and tested at the factory prior to shipment and come with insulated stack packages up to 20 feet long. Standard delivery is 6-8 weeks but expedited builds are available for those on tight schedules. GAT batch ovens come in eighteen standard sizes and you can order your oven in many different configurations. Standard batch ovens options include;
6’x6’, 8’x8’, 10’x10’ by 10’ deep up to 30’ deep configurations standard
Single Set of Doors or Doors on Both Ends
Conveyor Slots Floor Options -Insulated Floor-12 Ga. Steel floor-No Floor- Insulated Floor with Cart Slots
208v 75 amps- 208v-480v 60 amps-460-480v- 30 amps 3phase. Propane or Natural Gas fired
Excellence By Design
- Privately owned
- Fenton, Missouri
- Manufacturing Finishing Systems since 1959
- UL Panel Shop
- FM/NFPA Compliant
- CCAI Corporate Member-Gold level
- FabTech Exhibitor
GAT Ovens
- Dry Off
- Cure
- Combination
- Infrared
- Batch
- Dual use Liquid or Powder
GAT Convection
- Ovens 6” thick, 4# density batt mineral wool insulated panels
- 48” wide panel
45% fewer seams - Isolated spreader clip and stiffener channel construction in lieu of roll formed design
- Decreases thru steel by 90%
- VFD controlled exhaust fan
A picture is worth a thousand words
GAT oven panel
The ‘other’ Guys
Innovative Design
- 48” wide Panel Design
- 40% Fewer Seams
- 90% Less Thru Steel
- 6” Thick, 4# Mineral Wool Insulation
- Tongue and Groove Assembly
- 18 ga Galvaneal Steel
Fully Cure or Dry the Part
- 3” Thick Insulated Floor
- Floor Mounted Ductwork
- Appropriate Louver Location
- Top for dry off and sides for cure
- 4”x4” internal structural support
- Ductwork has 18 ga exterior with 12 ga Internal Frame
GAT Patented Air Seals
- Pressurized ductwork surrounds work opening
- Top 2/3 directs air back into oven
- Bottom 1/3 directs air out towards plant
- Minimizes thermal leakage
- Maintain uniformity of temperature of the oven
Meeting the Highest Standards
- FM volume 6-9, UL, NFPA 86 compliant gas train
- Top or Side Mount Heater Location
- Hi Limit Controller and Flame Safety
- Modulating burners with electrically ignited pilot
- Eclipse flame safety
- Honeywell UDC temperature controller
GAT Infrared Ovens
- Gel
- Boost
- Combination
- Two coat applications
- Zoned control for output and work opening
- PLC control
GAT Batch Ovens
- 18 standard sizes
- Double door option
- Top, end or side mounted heater
- Conveyor slots 12 ga plate or insulated floor design
- 6” thick oven panel
Inline Ovens
GAT ovens move higher volumes of air for rapid heat transfer to the product with minimal stratification due to our “Bottom Up” air flow design. The insulating capabilities of extra-heavy No. 18 gauge galvanized steel, combined with our patented air seal design, substantially improves curing efficiencies. All oven components arrive on the job site ready for erection, thus eliminating costly time delays due to field manufacturing of panels, duct work and oven heater assemblies. Cooling tunnels are available for applications that demand quick cooling & curing. Filtered plant or outside air is delivered through a balanced air flow tunnel construction. Oven exit fans exhaust processed air to the outside or back to the plant environment for a modified make-up air design.
Choose from a range of GAT commercial ovens:
- Three Zone Baking
- Combination Dry-off / Cure
- Double Deck Oven
- Side or Bottom Entry Oven
- Roof Mounted Oven
- IR Ovens
- Industrial Curing Ovens
- Combination Convection / Infrared
Excellence By Design
- Privately owned
- Fenton, Missouri
- Manufacturing Finishing Systems since 1959
- UL Panel Shop
- FM/NFPA Compliant
- CCAI Corporate Member-Gold level
- FabTech Exhibitor
GAT Ovens
- Dry Off
- Cure
- Combination
- Infrared
- Batch
- Dual use Liquid or Powder
GAT Convection
- Ovens 6” thick, 4# density batt mineral wool insulated panels
- 48” wide panel
45% fewer seams - Isolated spreader clip and stiffener channel construction in lieu of roll formed design
- Decreases thru steel by 90%
- VFD controlled exhaust fan
A picture is worth a thousand words
GAT oven panel
The ‘other’ Guys
Innovative Design
- 48” wide Panel Design
- 40% Fewer Seams
- 90% Less Thru Steel
- 6” Thick, 4# Mineral Wool Insulation
- Tongue and Groove Assembly
- 18 ga Galvaneal Steel
Fully Cure or Dry the Part
- 3” Thick Insulated Floor
- Floor Mounted Ductwork
- Appropriate Louver Location
- Top for dry off and sides for cure
- 4”x4” internal structural support
- Ductwork has 18 ga exterior with 12 ga Internal Frame
GAT Patented Air Seals
- Pressurized ductwork surrounds work opening
- Top 2/3 directs air back into oven
- Bottom 1/3 directs air out towards plant
- Minimizes thermal leakage
- Maintain uniformity of temperature of the oven
Meeting the Highest Standards
- FM volume 6-9, UL, NFPA 86 compliant gas train
- Top or Side Mount Heater Location
- Hi Limit Controller and Flame Safety
- Modulating burners with electrically ignited pilot
- Eclipse flame safety
- Honeywell UDC temperature controller
GAT Infrared Ovens
- Gel
- Boost
- Combination
- Two coat applications
- Zoned control for output and work opening
- PLC control
GAT Batch Ovens
- 18 standard sizes
- Double door option
- Top, end or side mounted heater
- Conveyor slots 12 ga plate or insulated floor design
- 6” thick oven panel
ECO Burn-Off Ovens
ECO Burn-Off Ovens has over two hundred years of combined experience in the industry. Together our company is committed to providing innovative, highly engineered, quality, and cost effective burn-off ovens to meet customer’s individual needs. ECO Burn-Off Ovens mission is to always surpass customer’s expectations.
ECO Burn-Off Ovens are designed with automated controls to minimize cycle time, allowing the oven to reach highest efficiency and not emit any harmful toxins into the environment. Organic coatings such as paint, varnish and related products are placed in a load. The chemically decomposing organic material (grease, oil, paint, etc.) begins to burn-off at elevated temperatures in the absence of oxygen.
Heat is released into the burn-off oven; no flame physically contacts any items put in the load. Once the cycle is complete organic material is turned into ash that may be rinsed or shot-blasted and the items are now ready to be put back in production. ECO Burn-Off Ovens are secure, trusted, easily operated, ecologically sound and save customers money.
Using heat cleaning technology, ECO Burn-off Ovens remove paint from racks, hooks, and other organic material that must be cleaned systematically to simplify the coating process.
Once the cycle is complete the organic material is turned into ash. The product can be rinsed or shot blasted and placed back into production.
ECO Burn-Off Ovens use heat cleaning technology to safely eliminate plastics, rubber and fibers from metal tooling without causing any damage to the product.
The longevity of the product is dramatically increased and the company’s overall cost in maintaining the cleanliness of the product is greatly reduced.
ECO Burn-Off Ovens allow automotive re-builders the capability to safely eliminate any oil, grease, varnish and other organic material from bearings, engine blocks and other metal parts.
Automotive re-builders are able to maximize their production capability.
ECO Burn-Off Oven safely eliminates any sediment, grease, oil and other organic material from machinery or tools used in the Oil and Gas Industry using heat cleaning technology.
The longevity of the product is dramatically increased and the company’s overall cost in maintaining the cleanliness of the product is greatly reduced.
ECO Burn-Off Ovens allow motor re-builders the capability to safely eliminate any adhesives and varnish from stators or other metal parts. No harm is done to the product and once the load is through processing stators are ready for winding.
Motor re-builders are able to improve motor reliability and will see a drop in their operating cost.
PRETREATMENT
GAT Industrial Washers
Our polypropylene washer housing and heating system produces 25% to 40% reduction in energy use as compared to a steel washer housing design.
GAT commercial washers are the most dramatic advancement in pretreatment washer design in years; And the energy savings is documented! But energy savings is only one of the many benefits. POLYPRO industrial washers also lower your overall maintenance costs. Polypropylene has a lower coefficient of heat transmission than steel or composite washer housings. GAT’s exclusive use of it’s high “U” exchanger offers the most efficient burner/exchanger process on the market. The firing rate of the burner components is reduced, thus adding life to your gas train and heat exchanger. Plus, polypropylene will not blister, swell or delaminate as hydroscopic composite materials are prone to do over time. The natural translucence of polypropylene allows ambient light to illuminate the interior of our industrial washer, providing a user friendly environment for both spray pattern observation and maintenance by your line personnel. There’s no need for auxiliary lighting.
Standard Features Of Our Commercial Washers:
Stainless steel interior housing supports, conveyor shroud, screens, access doors, sump lids, and pump mounting plate Ten-year guarantee on washer housing against rust and corrosion Tanks, heat exchangers, drain boards and conveyor rails also available in stainless steel SCH 80 CPVC Quick disconnect risers and spray nozzles Vertically mounted pumps Highest heat transfer on the market Centrifugal vent fans for extended bearing life Manifold utility connections
Washer Applications:
Overhead-single or multi-line Belt washers Dip or spray/dip applications drum washers
Excellence By Design
- Privately owned
- Fenton, Missouri
- Manufacturing Finishing Systems since 1959
- UL Panel Shop
- FM/NFPA Compliant
- CCAI Corporate Member-Gold level
- FabTech Exhibitor
General Automatic Transfer
GAT Washers
- Lifetime Warranty against Rust and Corrosion
- Polypropylene construction Low coefficient of heat transfer
- Reduce operational cost by up to 40%
- Reduced maintenance costs due to less frequent descaling
Excellence By Design
- Quick disconnect risers and nozzles
- Schedule 80 CPVC spray piping Poly constructed riser retention system
- Stainless steel conveyor shroud
- Stainless steel housing support frames rated for 100#’s/ft
- Stainless steel catwalks over tanks prevents dropped parts from accumulating in the tank
- Catwalks retain heat in tank
- Catwalks provide a stable maintenance platform
Excellence By Design
- Stainless steel housing upon request
- External neoprene gasket clad stainless steel support frames
- Stainless steel tank lids
- Stainless steel pump mounting plates
- Butterfly throttling valve
- Glycerin filled pressure gauges
Quality By Choice
- Unique ‘No Fall’ tank lid, prevents smashed fingers, and directs harmful chemical vapors and steam from operator’s face
- Overflow pipe and gutter standard on every tank. Integrated into 2” drain
- Vertically mounted Gusher pumps
Quality By Choice
- Commonly sized pump HP for less spare part inventory
- Dual stainless steel filtration screens on each pump
- Pump pressure can be controlled via butterfly or Variable Frequency Drive
Quality By Choice
- Stainless steel service door between each stage
- Ladder for safe entry and exit Non-slip treads
- Inset and internally drained designed
Patented high U energy efficient in tank heat exchanger
Proprietary Heat Exchanger
- Serpentine air flow design Up to 2x the surface
are of burner tube design - Measurably lower exhaust temperatures
- Regulated and engineered exhaust rate
Low pressure hot water heater
Hot Water Heater
- 15-20% more efficient operating costs
- Low pressure hot water design
- External design allows you to descale heat exchanger without dumping tank
- 316 stainless steel construction
Clean in Place Cart-descales heat exchanger
Bag Filter-removes solids from bath
Standard Accessories
- RO generation system
- Includes water softener
Active carbon Filter - 2500 gal Storage tank
- Includes fill centrifugal pump, high/low
flow package, and pipe components

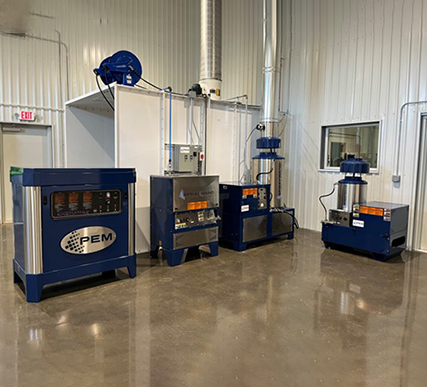

Electro-Steam Generators
These steam units specifically designed for pre-cleaning and iron-phosphating metal surfaces prior to powder coating.
Benefits of pre-cleaning and iron-phosphating systems vs. other systems:
Clean, smooth, and receptive surface recommended for paint and powder coating processes. Prevents the spread of undercoat corrosion for surfaces that have been nicked or scratched.
Large spray booths are not required since there is very minimal overspray. Uses approximately 50% less chemical than a pressure washer system. Produces much less waste water than other systems. Savings generated as a result of fewer chemicals, less water, and less effluent.
Additional benefits include the following:
Standard Stainless Steel Cabinets
Built in accordance with ASME, UL, and CSA requirements
National Board of PVI Shop Inspected
98% efficient resulting in energy and water conservation
Low or high pressure dry steam in less than 15 minutes (or on demand)
A one year warranty on all parts and a five year warranty on the chamber.
Re-defining ‘clean’ for any industry
DINAMEC and SCHWING offers the solution for all your metal stripping needs. Our solutions safely remove all organic substances from all kinds of metal parts no matter the industry. From paint, powder coating, plastic, polyesters, and rubber, we can remove it. Our machines can be found in a wide variety of industries with over 2,000 installations worldwide. We ensure a clean and healthy stripping alternative to more traditional methods. Our technology offers many benefits from optimal results, no abrasive damage to tools or parts and a high operating capacity with low operating cost.
Decoring and Sand Reclamation, and Heat Treatment
Looking to remove the sand cores from your aluminum castings? This is often a tedious job due to the integrated design and hard organic binders. The Dinamec Systems’ Deco Fluid Bed Installation is the perfect solution for the gentle and smooth decoring of aluminum parts. Traditional methods take long periods of time, cause deformation or damage and have a high operating cost. Our systems offer quick cleaning time, no damage of parts and all at a lower operating cost. We are your decoring solution.
Choosing the Right Dinamec Systems Fluidized Bed for Your Application A range of standard Dinamec Systems Fluid Clean machine configurations is available to comply with your particular cleaning needs. Our experienced engineering department, combined with a flexible production department allows us to offer custom-made installations for special projects.
| |
All dimensions are in inches. Please note that the capacity of our machines are not exclusively determined by the bed volume. Also to be considered are the type and amount of organics removed and the amount of metal to be processed. PLC based control system with 10″ color touch screen Operator Interface Features Include:
| |
| |
 | |
INNOVACLEAN is a compact, environmentally and user friendly fluidized bed pyrolysis system which removes all polymers – even halogenated substances such as PVC or PTFE – quickly and reliably from small and medium-size tools and components. Very fast residue-free cleaning in only a single process step | |
 | |
| INNOVACLEAN carbonizes any polymer without residues within one to two hours, for example, from injection nozzles and die plates as well as with slightly longer cleaning times from spin nozzles and assembled spin packs, static mixers, assembled pumps, backflow preventers, hot runner components and many other components. The precisely controllable cleaning process of INNOVACLEAN utilizes the material and heat transfer of fluidized THERMCLEAN sand (fluidized bed). The product to be cleaned is freed from plastic quickly and without mechanical or thermal interference at polymer-dependent temperatures from 450 to 520 °C. INNOVACLEAN works completely without waste water and waste. The generated low temperature carbonization gases are cleaned with an integrated thermal afterburner. On request, INNOVACLEAN will be equipped with a separate thermal afterburner or waste air washer for the pyrolysis gases from PVC, PTFE, etc. INNOVACLEAN systems may be set up and operated in Germany without an approval application because of their compact design and size. INNOVACLEAN increases tool life and helps significantly reduce machine downtimes. |  |
 | |
 |
VACUCLEAN is an easy to install, environmentally and user friendly vacuum pyrolysis cleaning system (vacuum cleaning oven) for removing plastic residues from tools and long components.
|
 |
| Depending on the system size, product to be cleaned and polymer VACUCLEAN removes organic adhesions within 8 to 30 hours without impacting the tools mechanically or thermally. The fully automatic cleaning process of VACUCLEAN takes place in an electrically heated vacuum cleaning chamber. The temperature is measured directly on the product to be cleaned, which is initially heated slowly and especially easy on the material; a large part of the adherent polymers already melts now and drains off. The disintegration of the remaining polymer takes place at approx. 450 °C; the remaining carbon is finally removed by adding air (oxidation). A sophisticated sensor system controls the cleaning process preventing the development of excess temperatures at all times. Inorganic residues can be easily removed through after-treatment, e.g. with compressed air. |
 |
| Through catalytic waste air cleaning VACUCLEAN produces clean air and clean waste water complying with official regulations. VACUCLEAN systems of model series 154f. may be set up and operated in Germany without an approval application because of their compact design and size. The especially precise and gentle cleaning quality of VACUCLEAN increases the life of tools and components and reduces interruptions in production. |
 |
|
Hood Options
The Dinamec Systems Fluid Clean fluidized sand bed can bemanufactured with a standard RAN hood or an Optional ICV high hood. The standard RAN hood is suitable for most paint and plastic applications. An ICV high hood is used for especially volatile organics with a low flash point. The high hood allows a basket to be loaded on dead sand and become fluidized after the hood is closed. Any fugitive fumes that may be present during loading is contained within the bed itself and removed by the forced air exhaust fan.
Flue Gas Cleaning
Dinamec Systems Fluid Clean installations can be supplied with an integrated cyclone or ceramic filter to remove dust particles from flue gases.
Neutralizing Corrosive Off Gassing
When removing certain halogenated compounds like PVC, Rubber or Teflon™, a dry absorption system can easily be included before the ceramic filter. A dry powder is injected and acts as a reagent to neutralize acid gasses (HF, SO2, HCL). The products of the reaction as well as dust are separated from the exhaust stream by means of a ceramic filter. Typically calcium hydroxide is used for acid gas removal.
If you are unsure how our Dinamec Systems Fluid Clean installation can be of use to your particular industry or production process, please contact us for more information or for an on site evaluation. You can also let us prove our cleaning efficiency by arranging a free test cleaning.
APPLICATION
Gema Manual Powder Coating Guns
Power – Quality – Control
The new generation of OptiFlex Pro manual units impresses with additional application performance due to the outstanding PowerBoost technology. With OptiFlex Pro, you easily process all powder types and coat complex parts in superior quality – all this worldwide and in the most difficult industrial environments.
The First Choice in Manual Powder Coating
The OptiFlex Pro manual units are uncompromisingly and agilely designed for maximum industrial suitability and worldwide use. The intelligent and durable components fit perfectly together and form the powerful package for superior manual powder coating. The ergonomic and intuitive operation enables every user to achieve the best coating results at any time.
Gema Automatic Powder Coating Guns
OptiGun GA03 – robust with the highest transfer efficiency
- Perfect coating results with all types of powder
- Even demanding Metallic and special powders
- Optimal transfer efficiency (100 kV high performance cascade)
- Quick color change design
- Broad range of application accessories
- Simple maintenance procedures
- Wear resistant and ergonomic design
- Suitable for injector and OptiSpray pump technology
Hertz Compressors / Air Dryers
HVD Series
HERTZ HVD series variable-speed compressors drive the motor with the frequency converter to adjust the compressor operation speed according to compressed air requirements and save up to 35% energy. Thanks to its high-quality equipment and excellent engineering in its design, it provides a very efficient and flexible use as per requirements.
Advantages
Up to 35 % energy saving* Operation at constant output pressure value Wide operating pressure range (100-175 psi) Soft starting Protection against the adverse effects of peak currents *When compared with compressors without an inverter for business with variable requirements
Main Motor and Drive System
Directly coupled one on one (1:1) with the elastic coupling Variable-speed starting with frequency converter High temperature protection with motor bearings (HVD 5-300)
Cooling System
Temperature controlled on-off type fan (HVD 5-22) Cooling fans controlled with secondary fan inverter (HVD SERIES 30-300) Independent radiator segments Silent and slow speed Radial fan (HVD 18-300) Quiet and efficient axial fan (HVD 5-15)
High temperature sensor for motor bearings (HVD 55-300) All air and oil tanks to comply with ASME standards
Additional Options to the General Options List
Model options with Tank, without Tank, with tank&dryer (HVD 5-15)
Electronic Control
Hertz Kompressoren rotary screw compressors are equipped with easy-to-use, robust and long-lasting microprocessor controllers with communication capabilities as per the product line to ensure smooth operation and uninterrupted production.
Screw Block
Patented and durable screw block that provides high-capacity of air, and that is specially selected for each model’s capacity requirement Production of air with less loss of air, thanks to the new rotor profiles, and lower torque requirements New generation bearing design with increased load carrying capabilities
Air Oil Separator
Easy-to-detach spin-on type separator (HVD 5-15) High-efficiency immersion type separator with long service life (HVD 18-300) High performance separation with three-stage design More efficient separation at lower volume with deeply wrapped, intertwined separation layers Low amount of oil mist in outlet air ≤ 3 ppm
Main Motor and Drive System
Premium 230-460 /3 phase/60Hz, IE3 IP55 electric motors with F Class insulation, Wye-Delta motor starting system. Long-lasting and efficient transfer system thanks to use of elastic couplings on direct coupled models.
CONVEYORS
Finishing Line Conveyors
Unparalleled Flexibility, Reliability, and Customization
From simple paint line conveyors to large-scale robotic systems, our expert staff will engineer a custom finishing system for your operation. For all of our finishing line conveyors, we offer monorail, power, and free conveyor solutions, automatic control, and fully installed systems for finishing conveyor applications.
Standard (Monorail) Systems
Monorail conveyor systems are simple and cost-effective. They follow one path, which means they work best with straightforward processes. There are two ways to power these systems: manually or by a continuous chain.
Power & Free Systems
Overhead power and free conveyors offer operators unparalleled flexibility for a variety of parts and processes. They can stop and start parts easily, perform at multiple speeds, divert to multiple locations, and provide part-tracking options, as needed. These systems use pusher dogs to engage and disengage connections between chains and trolleys.
Industrial Conveyors
Rapid Conveyor Systems are the systems of choice for a broad spectrum of manufacturing and material handling operations. They can turn, change levels, adapt and easily be configured without taking up valuable floor space.
- Rapid Flex Enclosed Track
- Rapid Flow QFlex
- Rapid Flow 3×3 Power & Free
- Rapid Flow 4×4 Conveyor System
- Floor Conveyors
Conveyor Accessories
Conveyor Lubrication Equipment
The heart of the conveyor lubricating system is the DL5003 microprocessor. This user friendly controller allows precise delivery and control of lubricant to the wear points on your chain conveyor or machine. It has many unique features which give you total control and flexibility for adding lubrication system points as you grow. Our conveyor lubrication equipment comes with a 3-year warranty on Digilube’s conveyor microprocessor and 1-year on the rest of the lubricator system.
